- Color: Blue
- Material: Metal and plastic
- Mounting Type: Through Hole
- Number of rows 1.
- No. of Contacts: 2
- Allowed Wire Size : 24-16AWG
- Voltage: 220V AC
- Operating Current :16A
- Pin Spacing : 5.08mm
- Contact resistance: 20mΩ
- Insulation resistance: 5000MΩ/1000V
- Withstanding voltage: AC1500V/1Min
- Torque: 0.5Nm
- Length: 10mm
- Width : 7.5mm
- Height : 14mm
- Weight: 4 gm approx. each
Sale!
Connectors

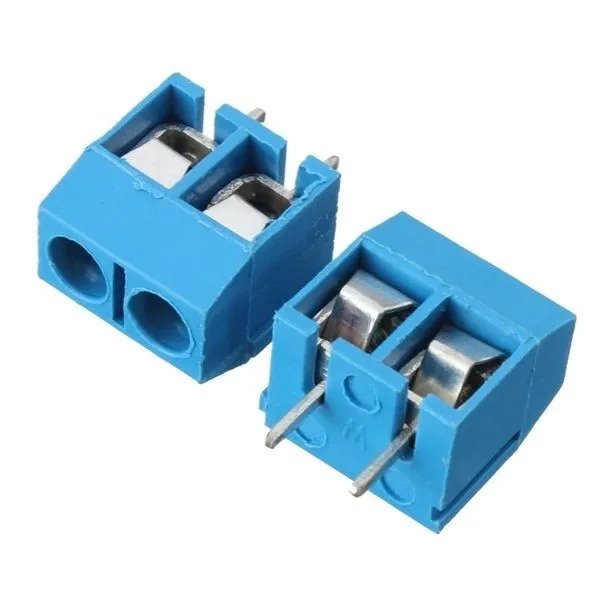

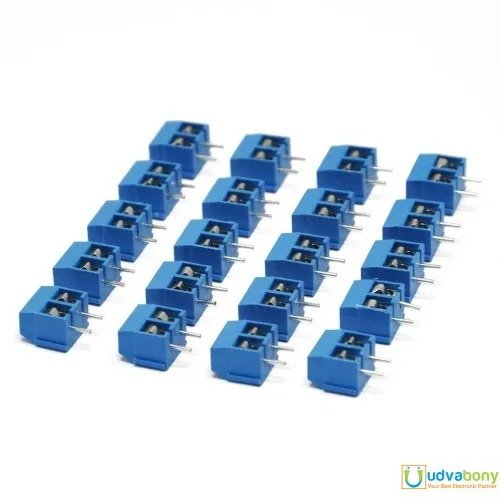

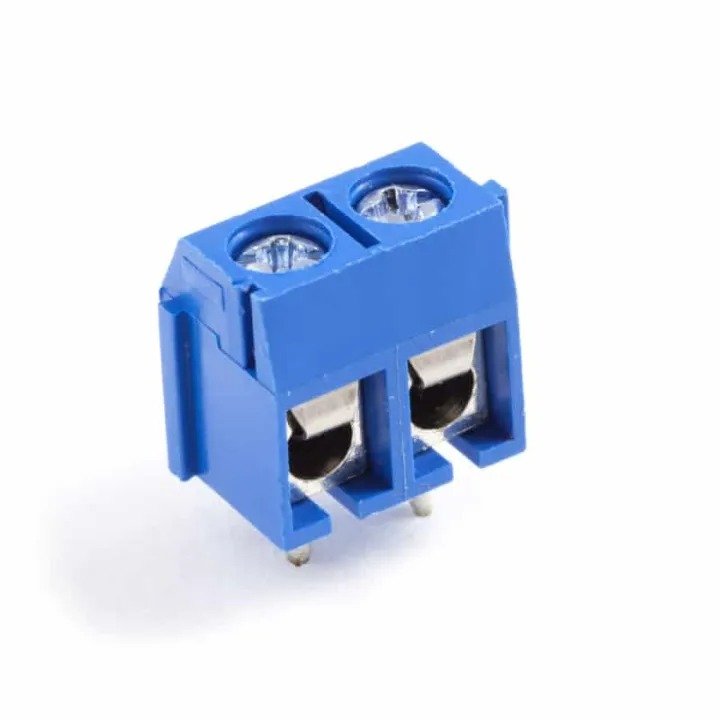

5Pcs- 2Pin BLUE Color KF301-2P 2 Pin Plug-In PCB Mount Straight Screws Terminal Block Connector 5.08mm Pitch Socket Strips For Electronics Cables Connectors Terminals
Original price was: 90.00৳ .70.00৳ Current price is: 70.00৳ .
2Pin BLUE Color KF301-2P 2 Pin Plug-In PCB Mount Straight Screws Terminal Block Connector 5.08mm Pitch Socket Strips For Electronics Cables Connectors Terminals
2 Pin 5.08mm Pitch Plug-in Screw Terminal Block Connector is a type of electrical connector, frequently used to connect wires to the PCB. The connector has a screw in each pin to fasten the wire securely. It has tin-plated brass for pin header and has nickel-plated brass contacts.
The connector is made of PBT (Polybutylene terephthalate) which is mechanically strong, heat resistant and has good insulation properties.
As a kind of connector, the terminal block is an important module in the electric industry. It is convenient to connect wires.
Availability: 1000 in stock
